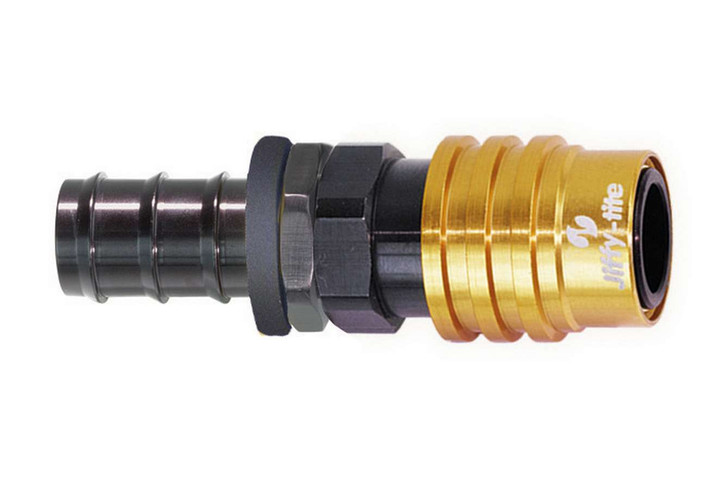

8an Socket Push Lock Hose End- Valved

The 8AN Socket Push Lock Hose End with Valved design is a precision quick-release adapter built for high-pressure hydraulic and pneumatic systems demanding reliable, leak-free connections. Designed for professionals and serious operators in aerospace, automotive, industrial, and military applications, this connector eliminates the need for manual fittings while maintaining system integrity under demanding conditions. The push-lock mechanism enables fast coupling and decoupling without special tools, making it ideal for equipment that requires frequent disconnection or mobile deployment.

Engineered with a straight 8 AN hose barb configuration, this valved quick-release socket accepts standard 8 AN hose connections and integrates seamlessly into 3000 Series hydraulic systems rated for 3,000 PSI service. The internal check valve design prevents fluid spillage and contamination during disconnect, protecting both the system and the environment. Constructed from anodized aluminum in black and gold finish, the housing delivers corrosion resistance and durability in harsh operating environments while minimizing weight. The FKM elastomer seal ensures chemical compatibility and reliable performance across a wide temperature range, critical for systems operating in variable industrial or tactical settings.

This hose end adapter benefits equipment operators, maintenance technicians, and system integrators who need dependable quick-disconnect solutions without sacrificing safety or performance. Real-world applications include tactical equipment, mobile hydraulic platforms, portable power units, and modular system configurations where downtime must be minimized. Installation is straightforward—the barb end slides over compatible 8 AN hose and secures with a stainless-steel crimp or hose clamp, while the push-lock socket end connects to any standard 3000 Series quick-release coupler. Compact dimensions (3.6 x 1.65 x 4.9 inches) and lightweight construction (0.15 lbs) ensure integration into space-constrained assemblies without sacrificing flow capacity or system response.
